2SC1777 - NPN Transistor

2SC1777 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC1777 .
Collector-Emitter Sustaining Voltage- VCEO(SUS)= 70V(Min). 100% avalanche tested. Minimum Lot-to-Lot variations for robust device perform.

2SC1777 Applications

* Automotive ignition
* Switching regulator
* Motor control applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 70 V VCEO Collector-Emitter Voltage 70 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous PC Co

📥 Download Datasheet

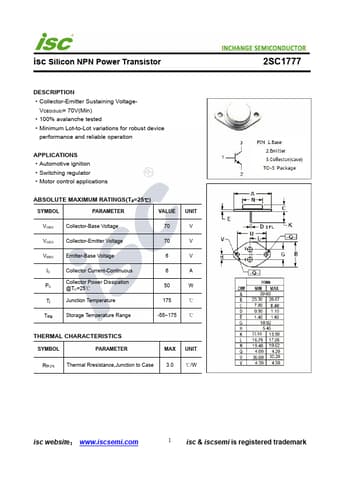

Preview of 2SC1777 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC1777
Manufacturer
INCHANGE
File Size
173.49 KB
Datasheet
2SC1777-INCHANGE.pdf
Description
NPN Transistor
