2SC1775 Datasheet - Hitachi Semiconductor

2SC1775 - Silicon NPN Transistor

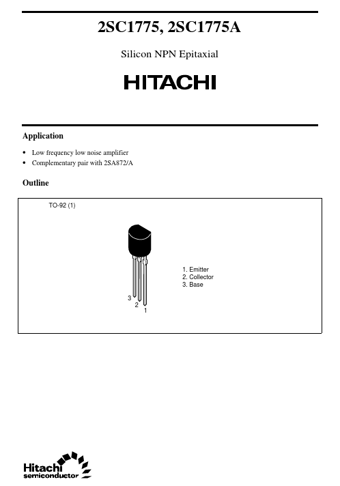

2SC1775, 2SC1775A Silicon NPN Epitaxial Application Low frequency low noise amplifier Complementary pair with 2SA872/A Outline TO-92 (1) 1. Emitter 2. Collector 3. Base 3 2 1 2SC1775, 2SC1775A Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg 2SC1775 90 90 5 50 300 150 55 .

2SC1775_HitachiSemiconductor.pdf

2SC1775 Datasheet Preview — Preview of 2SC1775 PDF

Datasheet Details

Part number:

2SC1775

Manufacturer:

Hitachi Semiconductor

File Size:

36.31 KB

Description:

Silicon npn transistor.
