2SC1893 NPN Transistor

INCHANGE

Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC1893 .
With TO-3 Package. Low collector saturation voltage. Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

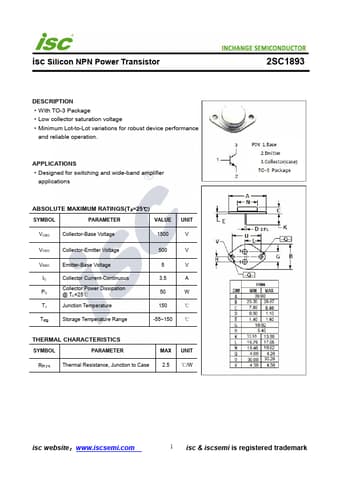

2SC1893 Datasheet Preview — Preview of 2SC1893 PDF

Datasheet Specifications

Part number: 2SC1893
Manufacturer: INCHANGE
File Size: 173.59 KB
Datasheet: 2SC1893-INCHANGE.pdf
Description: NPN Transistor

Applications

* Designed for switching and wide-band amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 500 V VEBO IC PC TJ Tstg Emitter-Base Voltage Collector Current-Continuous Collector Power Di
