2SC1894 NPN Transistor

2SC1894 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC1894 .
With TO-3 Package. Low collector saturation voltage. Minimum Lot-to-Lot variations for robust device performance and reliable operation.

2SC1894 Applications

* Designed for switching and wide-band amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 600 V VEBO IC PC TJ Tstg Emitter-Base Voltage Collector Current-Continuous Collector Power Di

📥 Download Datasheet

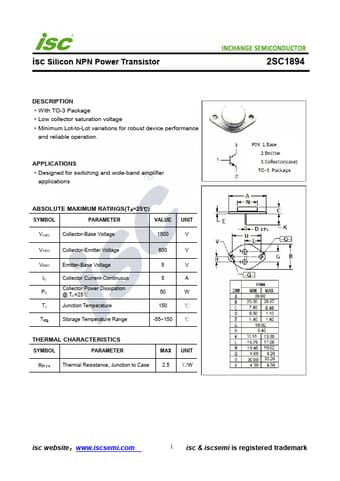

Preview of 2SC1894 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC1894
Manufacturer
INCHANGE
File Size
174.06 KB
Datasheet
2SC1894-INCHANGE.pdf
Description
NPN Transistor
