2SC2913 - NPN Transistor

2SC2913 Description

isc Silicon NPN Power Transistor 2SC2913 .
High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 400V (Min). High Switching Speed. Minimum Lot-to-Lot variations for robust device p.

2SC2913 Applications

* Switching regulator and high voltage switching applications
* High speed DC-DC converter applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MAX UNIT VCBO Collector-Base Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 7 V IC Collect

📥 Download Datasheet

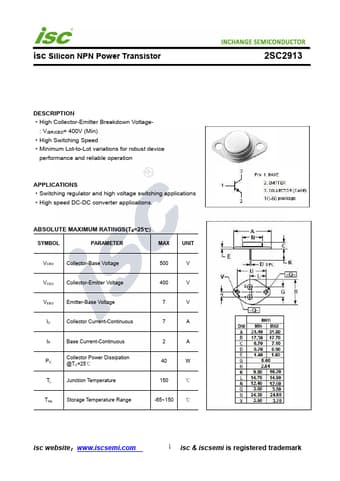

Preview of 2SC2913 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2913
Manufacturer
INCHANGE
File Size
206.70 KB
Datasheet
2SC2913-INCHANGE.pdf
Description
NPN Transistor
