2SC2909 - PNP/NPN Epitaxial Planar Silicon Transistors

2SC2909 Description

www.DataSheet.co.kr Ordering number:ENN778F PNP/NPN Epitaxial Planar Silicon Transistors 2SA1207/2SC2909 High-Voltage Switching AF 60W Predriver Ap.

2SC2909 Features

* Adoption of FBET process.
* High breakdown voltage.
* Excellent linearity of hFE and small Cob.
* Fast switching speed. Package Dimensions unit:mm 2003B [2SA1207/2SC2909] 5.0 4.0 4.0 0.45 0.5 0.6 2.0 0.45 0.44 14.0 1 2 3 5.0 ( ) : 2SA1207 Specifications Absolute Maximum Rating

📥 Download Datasheet

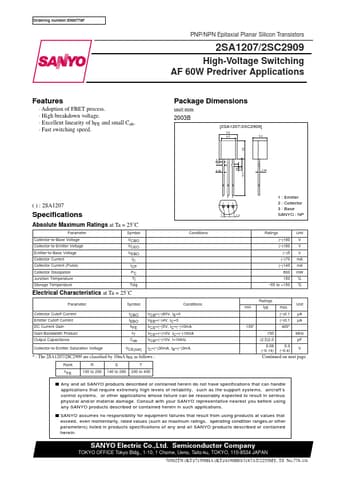

Preview of 2SC2909 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC2909
Manufacturer
Sanyo Semicon Device
File Size
100.06 KB
Datasheet
2SC2909_SanyoSemiconDevice.pdf
Description
PNP/NPN Epitaxial Planar Silicon Transistors
