2SC3709A - NPN Transistor

Product Overview

📥 Download Datasheet

Datasheet preview – 2SC3709A

Datasheet Details

Part number 2SC3709A
Manufacturer INCHANGE
File Size 218.37 KB
Description NPN Transistor
Datasheet download datasheet 2SC3709A Datasheet

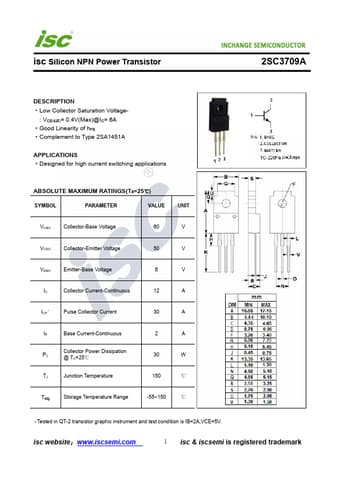

Additional preview pages of the 2SC3709A datasheet.

Product details

Description

Low Collector Saturation Voltage- : VCE(sat)= 0.4V(Max)@IC= 6A Good Linearity of hFE Complement to Type 2SA1451A APPLICATIONS Designed for high current switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 12 A ICP＊ Pulse Collector Current 30 A IB Base Current-Continuous PC Collector Power
