2SD1803 - TO-252 NPN Transistor

Product Overview

📥 Download Datasheet

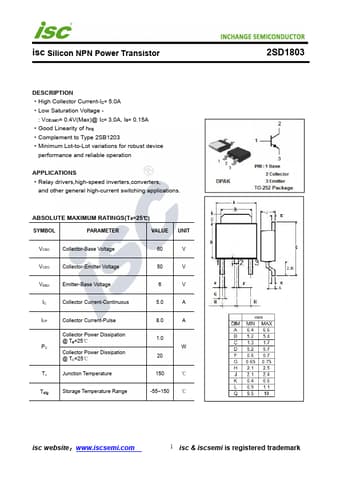

Datasheet preview – 2SD1803

Datasheet Details

Part number 2SD1803
Manufacturer INCHANGE
File Size 211.80 KB
Description TO-252 NPN Transistor
Datasheet download datasheet 2SD1803 Datasheet
Additional preview pages of the 2SD1803 datasheet.

Product details

Description

High Collector Current-IC= 5.0A Low Saturation Voltage - : VCE(sat)= 0.4V(Max)@ IC= 3.0A, IB= 0.15A Good Linearity of hFE Complement to Type 2SB1203 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Relay drivers,high-speed inverters,converters, and other general high-current switching applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emi
