2SD1804 - NPN Transistor

2SD1804 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD1804 .
Excellent linearity of hFE. Low Collector-Emitter Breakdown Voltage- : V(BR)CEO= 50 V. Fast switching time. Minimum Lot-to-Lot variat.

2SD1804 Applications

* Relay drivers, high-speed inverters , converters and Other general high current switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage 6 V IC Collector Cur

📥 Download Datasheet

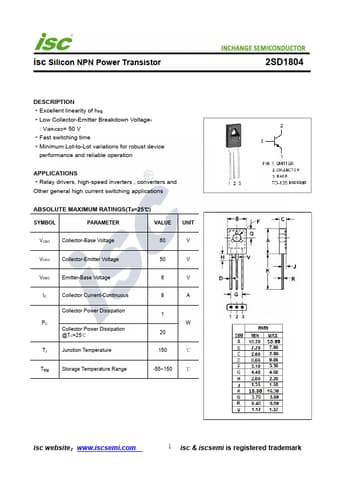

Preview of 2SD1804 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1804
Manufacturer
INCHANGE
File Size
208.22 KB
Datasheet
2SD1804-INCHANGE.pdf
Description
NPN Transistor
