2SD762 NPN Transistor

2SD762 Description

isc Silicon NPN Power Transistor 2SD762 .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 60V(Min. Collector-Emitter Saturation Voltage- : VCE(sat)= 1. Wid.

2SD762 Applications

* Designed for AF power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 60 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 4 A ICM Collector Current-Peak 6

📥 Download Datasheet

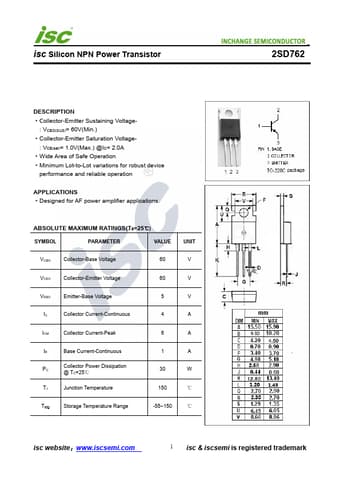

Preview of 2SD762 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD762
Manufacturer
INCHANGE
File Size
208.07 KB
Datasheet
2SD762-INCHANGE.pdf
Description
NPN Transistor
