Part number:
2SD700
Manufacturer:
File Size:
128.42 KB
Description:
Npn transistor.
:g

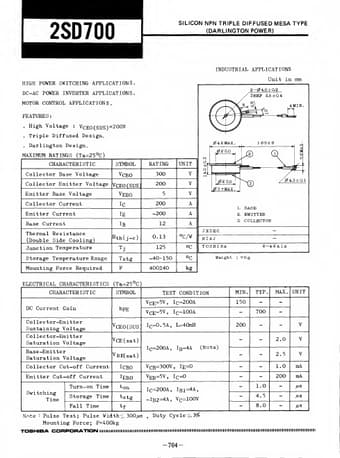

SILICON NPN TRIPLE DIFFUSED MESA TYPE (DARLINGTON POWER)
HIGH POWER SWITCHING APPLICATIONS. DC-AC POWER INVERTER APPLICATIONS. MOTOR CONTROL APPLI.
* . High Voltage : VCEO (SUS)=200V . Triple Diffused Design. . Darlington Design. MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL Collector Base Voltage vCBO Collector Emitter Voltage VCEO(SUS: Emitter Base Voltage VEBO Collector Current ic Emitter Current IE Base Current IB Thermal Re
2SD700
128.42 KB
Npn transistor.
:g
SILICON NPN TRIPLE DIFFUSED MESA TYPE (DARLINGTON POWER)
HIGH POWER SWITCHING APPLICATIONS. DC-AC POWER INVERTER APPLICATIONS. MOTOR CONTROL APPLI.
