Part number:
2SD717
Manufacturer:
File Size:
127.35 KB
Description:
Npn transistor.

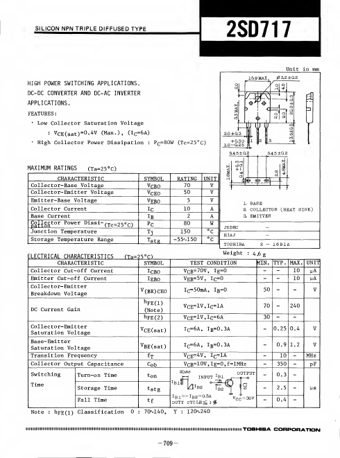

SILICON NPN TRIPLE DIFFUSED TYPE
HIGH POWER SWITCHING APPLICATIONS.
Unit in mm
1&9MAX. 0&2±o.2
DC-DC CONVERTER AND DC-AC INVERTER APPLICATIONS.
-A.
* Low Collector Saturation Voltage : VCE (sat)=0.4V (Max.), (I C=6A)
* High Collector Power Dissipation : P C=80W (Tc=25°C) 5.45±Q2 545±0.2 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base C
2SD717
127.35 KB
Npn transistor.
SILICON NPN TRIPLE DIFFUSED TYPE
HIGH POWER SWITCHING APPLICATIONS.
Unit in mm
1&9MAX. 0&2±o.2
DC-DC CONVERTER AND DC-AC INVERTER APPLICATIONS.
-A.
