2SD718A Datasheet, Transistor, JILIN SINO

2SD718A Features

  • Transistor
  • High collector voltage:VCEO=110V (min) VCEO=180V (min)
  • Complementary to 2SB688
  • Recommended for 45-50W audio frequency amplifier output
  • RoHS product

PDF File Details

Part number:

2SD718A

Manufacturer:

JILIN SINO

File Size:

508.86kb

Download:

📄 Datasheet

Description:

Silicon npn triple diffused transistor.

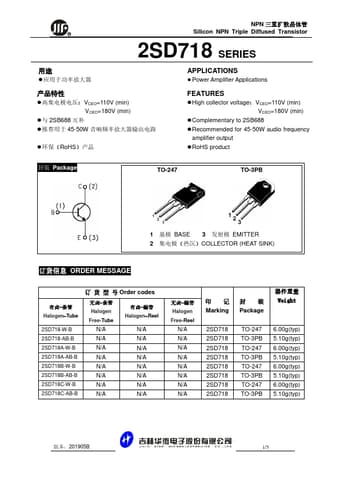

Datasheet Preview: 2SD718A 📥 Download PDF (508.86kb)
Page 2 of 2SD718A Page 3 of 2SD718A

2SD718A Application

  • Applications
  • Power Amplifier Applications FEATURES
  • High collector voltage:VCEO=110V (min) VCEO=180V (min)
  • Complementary

TAGS

2SD718A
Silicon
NPN
Triple
Diffused
Transistor
JILIN SINO
