2SD718C, 2SD718 - Silicon NPN Triple Diffused Transistor

2SD718C Description

NPN R Silicon NPN Triple Diffused Transistor 2SD718 SERIES * *：VCEO=110V (min) VCEO=180V (min) * 2SB688 * 45-50W * （RoHS.

2SD718C Features

* High collector voltage：VCEO=110V (min) VCEO=180V (min)
* Complementary to 2SB688
* Recommended for 45-50W audio frequency amplifier output
* RoHS product Package TO-247 TO-3PB 1 BASE 3 EMITTER 2 （）COLLECTOR (HEAT SINK) ORDER MESSAGE - Halogen-Tube 2SD718-W-B 2SD718-AB-B 2SD71

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SD718C, 2SD718. Please refer to the document for exact specifications by model.

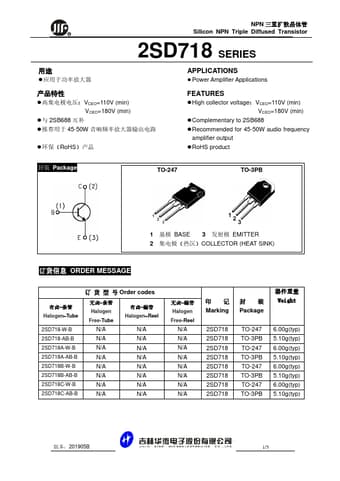

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD718C, 2SD718
Manufacturer
JILIN SINO
File Size
508.86 KB
Datasheet
2SD718-JilinSino.pdf
Description
Silicon NPN Triple Diffused Transistor
Note
This datasheet PDF includes multiple part numbers: 2SD718C, 2SD718.
Please refer to the document for exact specifications by model.
