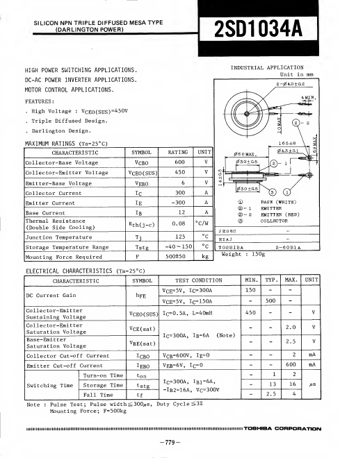

* . High Voltage : VCEO (SUS)=450V . Triple Diffused Design. . Darlington Design. INDUSTRIAL APPLICATION Unit in mm 2-04.O±Q.2 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Emitter Current Base Current Thermal Resista
2SD1034A Datasheet (121.59 KB)
2SD1034A
121.59 KB
Npn transistor.
:
SILICON NPN TRIPLE DIFFUSED MESA TYPE (DARLINGTON POWER)
2SD1034A
HIGH POWER SWITCHING APPLICATIONS. DC-AC POWER INVERTER APPLICATIONS. MOTOR CONT.
