2SD1069 Silicon NPN Transistor

2SD1069 Description

2SD1 069 SILICON NPN DOUBLE DIFFUSED TYPE (PCT PROCESS) TV HORIZONTAL DEFLECTION OUTPUT APPLICATIONS.HIGH VOLTAGE SWITCHING APPLICATIONS..

2SD1069 Features

* . Built in Damper Type. . High Collector Current Capability. . High Collector Power Dissipation Capability. MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Current (Peak) Base Current Collector Power

📥 Download Datasheet

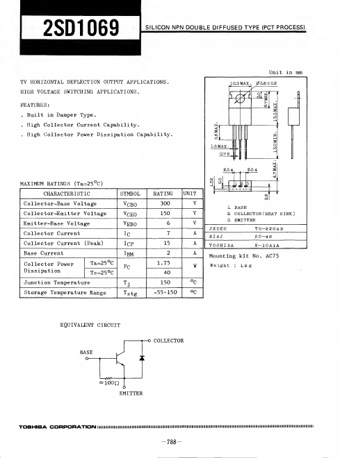

Preview of 2SD1069 PDF
datasheet Preview Page 2 datasheet Preview Page 3
