2SD103 - Silicon NPN Power Transistors

Datasheet Summary

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 50V(Min) High Power Dissipation- : PC= 25W(Max)@TC=25℃ Complement to Type 2SB503 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for audio power amplifier, power switchi

Inchange Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	2SD103
Manufacturer	Inchange Semiconductor
File Size	211.44 KB
Description	Silicon NPN Power Transistors
Datasheet	2SD103 Datasheet

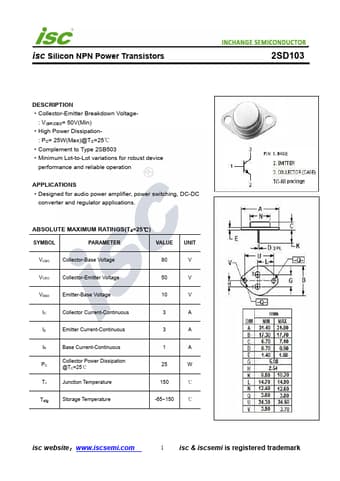

Additional preview pages of the 2SD103 datasheet.
