2SD764 NPN Transistor

2SD764 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD764 .
With TO-3 Package. High Voltage Capability. Low collector saturation voltage. Minimum Lot-to-Lot variations for robust device perform.

2SD764 Applications

* Designed for high voltage power switching TV horizontal deflection output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 600 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Cont

📥 Download Datasheet

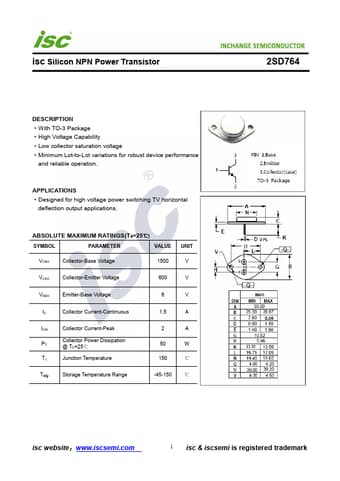

Preview of 2SD764 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD764
Manufacturer
INCHANGE
File Size
175.99 KB
Datasheet
2SD764-INCHANGE.pdf
Description
NPN Transistor
