2SK3681 Datasheet, Mosfet, INCHANGE

2SK3681 Features

  • Mosfet
  • Static Drain-Source On-Resistance : RDS(on) = 160mΩ(Max)
  • With low gate drive requirements
  • 100% avalanche tested
  • Minimum Lot-to-Lot variations for rob

PDF File Details

Part number:

2SK3681

Manufacturer:

INCHANGE

File Size:

195.01kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

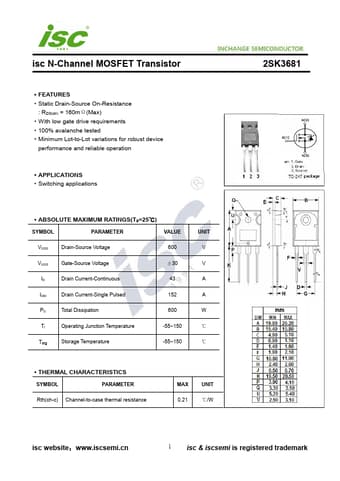

Datasheet Preview: 2SK3681 📥 Download PDF (195.01kb)
Page 2 of 2SK3681

2SK3681 Application

  • Applications
  • Switching applications
  • ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600
