2SK3683-01MR

N-Channel MOSFET Transistor

2SK3683-01MR Features

* Drain Current : ID= 19A@ TC=25℃

* Drain Source Voltage : VDSS= 500V(Min)

* Static Drain-Source On-Resistance : RDS(on) = 0.38Ω(Max) @ VGS= 10V

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION

* motor drive,

2SK3683-01MR General Description


*motor drive, DC-DC converter, power switch and solenoid drive. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 500 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 19 A IDM Drain Current-Single Pluse 76 A PD Tot.

2SK3683-01MR Datasheet (280.34 KB)

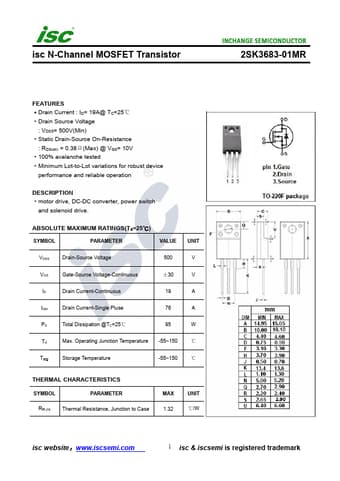

Preview of 2SK3683-01MR PDF

Datasheet Details

Part number:

2SK3683-01MR

Manufacturer:

Inchange Semiconductor

File Size:

280.34 KB

Description:

N-channel mosfet transistor.
