AOD3N80 - N-Channel MOSFET

AOD3N80 Description

isc N-Channel MOSFET Transistor INCHANGE Semiconductor AOD3N80 *.

AOD3N80 Features

* With TO-252(DPAK) packaging
* High speed switching
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

AOD3N80 Applications

* Power supply
* DC-DC converters
* Motor control
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 800 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous Drain Current-Single Pulsed ±30 2.8 1.8 9 PD Total Di

📥 Download Datasheet

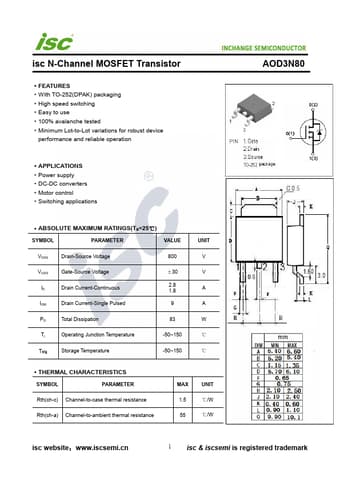

Preview of AOD3N80 PDF
datasheet Preview Page 2

Datasheet Details

Part number
AOD3N80
Manufacturer
INCHANGE
File Size
204.37 KB
Datasheet
AOD3N80-INCHANGE.pdf
Description
N-Channel MOSFET
