AOD3N40 - N-Channel MOSFET

Product Overview

📥 Download Datasheet

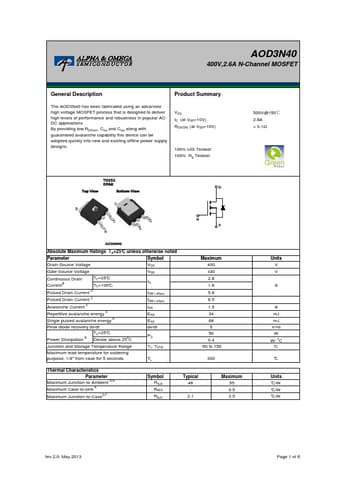

Datasheet preview – AOD3N40

Datasheet Details

Part number AOD3N40
Manufacturer Alpha & Omega Semiconductors
File Size 386.04 KB
Description N-Channel MOSFET
Datasheet download datasheet AOD3N40 Datasheet
Additional preview pages of the AOD3N40 datasheet.

Product details

Description

Product Summary The AOD3N40 has been fabricated using an advanced high voltage MOSFET process that is designed to deliver high levels of performance and robustness in popular ACDC applications.By providing low RDS(on), Ciss and Crss along with guaranteed avalanche capability this device can be adopted quickly into new and existing offline power supply designs.VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) 100% UIS Tested! 100% Rg Tested! 500V@150℃ 2.6A < 3.1Ω Top View TO252 DPAK Bottom View D
