AOD2144 - N-Channel MOSFET

AOD2144 Description

Isc N-Channel MOSFET Transistor INCHANGE Semiconductor AOD2144 *.

AOD2144 Features

* With To-252(DPAK) package
* Low input capacitance and gate charge
* Low gate input resistance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

AOD2144 Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 40 VGSS ID IDM Gate-Source Voltage Drain Current-ContinuousTc=25℃ Tc=100℃ Drain Current-Single Pulsed ±20 205 120 772 PD Total Dissipation @TC=25℃ 156 Tch Max. Operating

📥 Download Datasheet

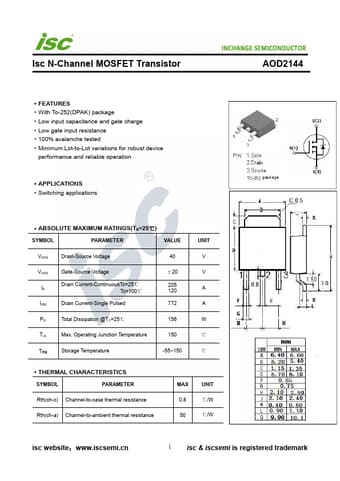

Preview of AOD2144 PDF
datasheet Preview Page 2

Datasheet Details

Part number
AOD2144
Manufacturer
INCHANGE
File Size
203.78 KB
Datasheet
AOD2144-INCHANGE.pdf
Description
N-Channel MOSFET
