AOD240 - N-Channel MOSFET

Product Overview

INCHANGE

Datasheet Details

Part number	AOD240
Manufacturer	INCHANGE
File Size	259.15 KB
Description	N-Channel MOSFET
Datasheet	AOD240 Datasheet

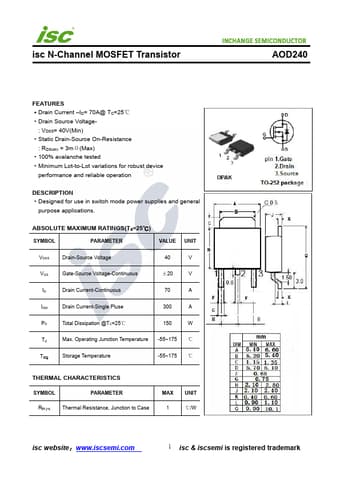

Additional preview pages of the AOD240 datasheet.

Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 40 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 70 A IDM Drain Current-Single Pluse 300 A PD Total Dissipation @TC=25℃ 150 W TJ Max.Operating Junction Temperature -55~175 ℃ Tstg Storage Temperature -55~175 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Re

Features

Drain Current.
ID= 70A@ TC=25℃.
Drain Source Voltage- : VDSS= 40V(Min).
Static Drain-Source On-Resistance : RDS(on) = 3mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
