AOD2210 - 200V N-Channel MOSFET

Datasheet Summary

Description

Trench Power MV MOSFET technology Low RDS(ON) Low Gate Charge Optimized for fast-switching applications Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=5V) 200V 18A < 105mΩ < 120mΩ Applications Synchronus Rectification in

📥 Download Datasheet

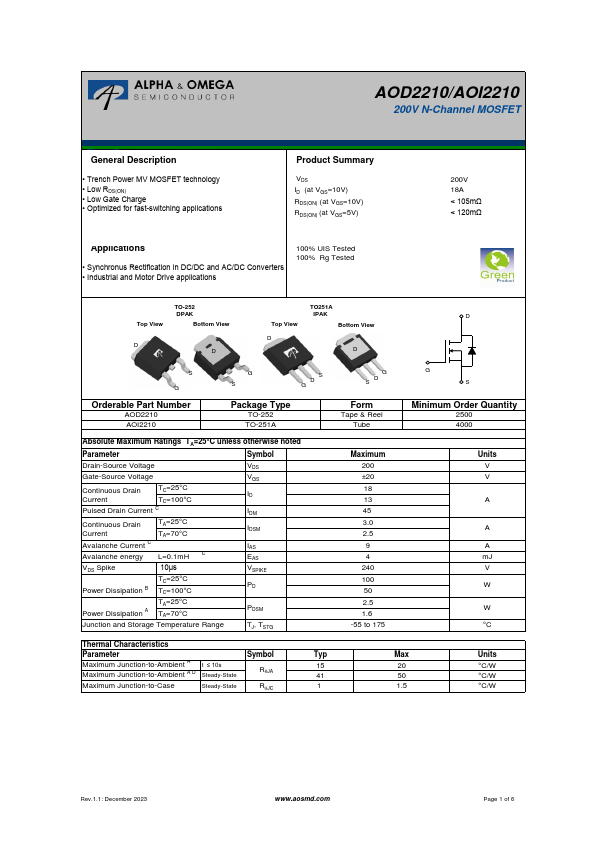

Datasheet preview – AOD2210

Datasheet Details

Part number AOD2210
Manufacturer Alpha & Omega Semiconductors
File Size 370.44 KB
Description 200V N-Channel MOSFET
Datasheet download datasheet AOD2210 Datasheet

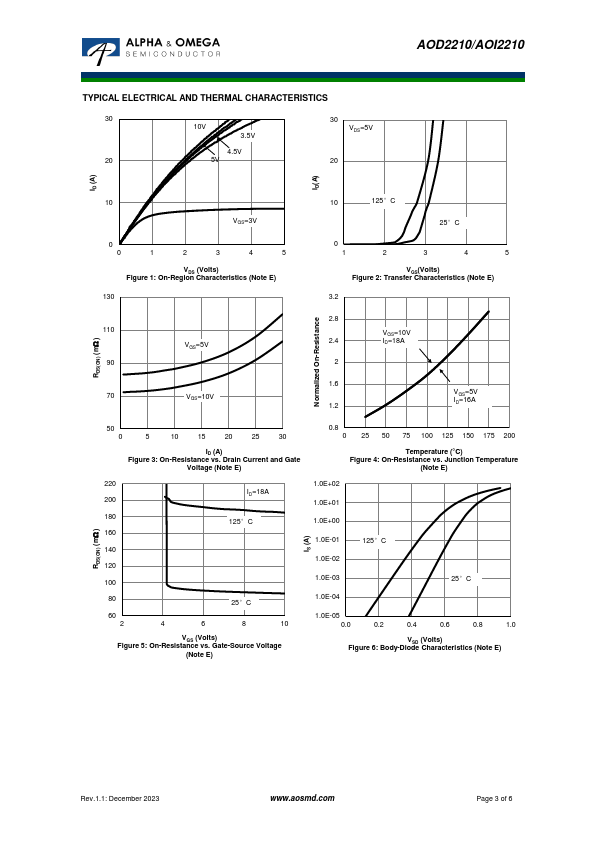

Additional preview pages of the AOD2210 datasheet.

📁 Similar Datasheet

  • AOD2210 - N-Channel MOSFET (INCHANGE)
  • AOD2210 - N-Channel 200V MOSFET (VBsemi)
  • AOD200 - N-Channel MOSFET (Freescale)
  • AOD200 - N-Channel MOSFET (INCHANGE)
  • AOD208 - N-Channel MOSFET (Freescale)
  • AOD208 - N-Channel MOSFET (INCHANGE)
  • AOD210 - N-Channel MOSFET (INCHANGE)
  • AOD210 - N-Channel MOSFET (Freescale)
  • AOD2144 - N-Channel MOSFET (INCHANGE)
  • AOD2146 - N-Channel MOSFET (INCHANGE)
Other Datasheets by Alpha & Omega Semiconductors

Full PDF Text Transcription

Click to expand full text
AOD2210/AOI2210 200V N-Channel MOSFET General Description • Trench Power MV MOSFET technology • Low RDS(ON) • Low Gate Charge • Optimized for fast-switching applications Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=5V) 200V 18A < 105mΩ < 120mΩ Applications • Synchronus Rectification in DC/DC and AC/DC Converters • Industrial and Motor Drive applications 100% UIS Tested 100% Rg Tested TO-252 TO251A DPAK IPAK D Top View Bottom View Top View Bottom View D D D D S G Orderable Part Number AOD2210 AOI2210 G S S D G Package Type TO-252 TO-251A Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current TC=25°C TC=100°C ID Pulsed Drain Current C IDM C
