AOD2144 - 40V N-Channel MOSFET

Description

Trench Power MV MOSFET technology Low RDS(ON) Low Gate Charge Opitimized Ruggedness RoHS and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 40V 120A < 2.3mΩ < 4mΩ Applications DC Mo

📥 Download Datasheet

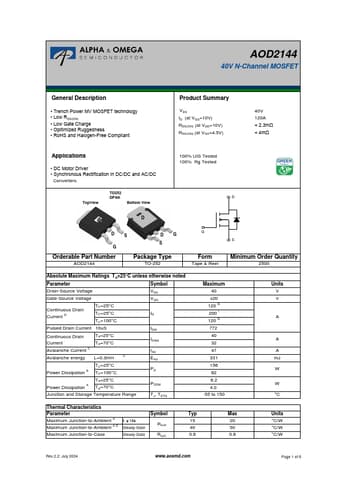

Datasheet preview – AOD2144

Datasheet Details

Part number AOD2144
Manufacturer Alpha & Omega Semiconductors
File Size 452.38 KB
Description 40V N-Channel MOSFET
Datasheet download datasheet AOD2144 Datasheet
Additional preview pages of the AOD2144 datasheet.

📁 Similar Datasheet

  • AOD2144 - N-Channel MOSFET (INCHANGE)
  • AOD2146 - N-Channel MOSFET (INCHANGE)
  • AOD210 - N-Channel MOSFET (INCHANGE)
  • AOD210 - N-Channel MOSFET (Freescale)
  • AOD200 - N-Channel MOSFET (Freescale)
  • AOD200 - N-Channel MOSFET (INCHANGE)
  • AOD208 - N-Channel MOSFET (Freescale)
  • AOD208 - N-Channel MOSFET (INCHANGE)
  • AOD2210 - N-Channel MOSFET (INCHANGE)
  • AOD2210 - N-Channel 200V MOSFET (VBsemi)
Other Datasheets by Alpha & Omega Semiconductors

Full PDF Text Transcription

Click to expand full text
AOD2144 40V N-Channel MOSFET General Description • Trench Power MV MOSFET technology • Low RDS(ON) • Low Gate Charge • Opitimized Ruggedness • RoHS and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 40V 120A < 2.
