AOD2146 - N-Channel MOSFET

AOD2146 Description

isc N-Channel MOSFET Transistor AOD2146 .
Designed for use in switch mode power supplies and general purpose applications.

AOD2146 Features

* Drain Current
* ID= 54A@ TC=25℃
* Drain Source Voltage- : VDSS= 40V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 3.1mΩ(Max)
* 100% avalanche tested

AOD2146 Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 40 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 54 A IDM Drain Current-Single Pluse 215 A PD Total Dissipation @TC=25℃ 100 W TJ Max. Operating Junction Temperat

📥 Download Datasheet

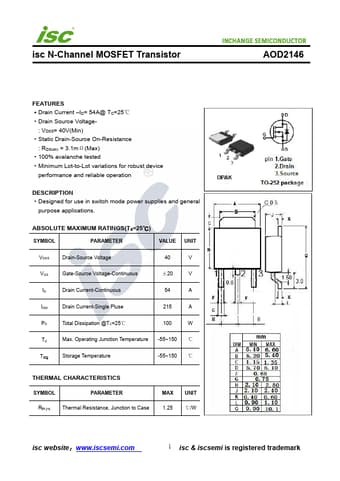

Preview of AOD2146 PDF
datasheet Preview Page 2

Datasheet Details

Part number
AOD2146
Manufacturer
INCHANGE
File Size
258.88 KB
Datasheet
AOD2146-INCHANGE.pdf
Description
N-Channel MOSFET
