APT8052BLL - N-Channel MOSFET

Product Overview

INCHANGE

Datasheet Details

Part number	APT8052BLL
Manufacturer	INCHANGE
File Size	371.48 KB
Description	N-Channel MOSFET
Datasheet	APT8052BLL Datasheet

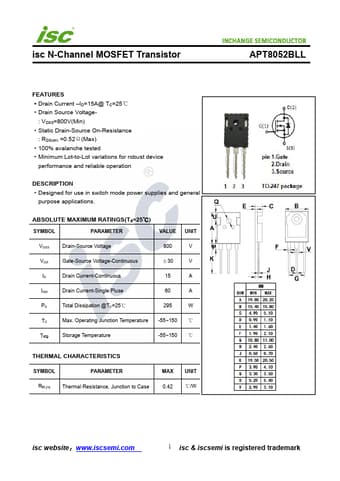

Additional preview pages of the APT8052BLL datasheet.

Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 800 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 15 A IDM Drain Current-Single Pluse 60 A PD Total Dissipation @TC=25℃ 295 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal R

Features

Drain Current.
ID=15A@ TC=25℃.
Drain Source Voltage- : VDSS=800V(Min).
Static Drain-Source On-Resistance : RDS(on) =0.52Ω(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
