BD902 - PNP Transistor

BD902 Description

isc Silicon PNP Darlington Power Transistor BD902 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -100V(Min). High DC Current Gain : hFE= 750(Min) @IC= -3A. Collector Power Dissipation-.

BD902 Applications

* Designed for use as complementary AF push-pull output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VCBO Collector-Base Voltage -100 VCEO Collector-Emitter Voltage -100 VEBO Emitter-Base Voltage -5 IC Collector Current-Continuous -8 IB Base Current

📥 Download Datasheet

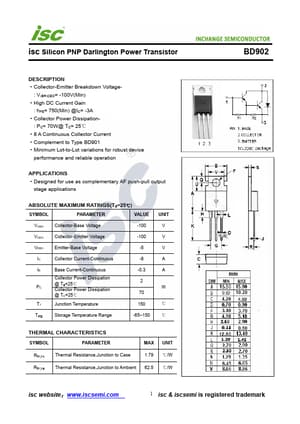

Preview of BD902 PDF
datasheet Preview Page 2

Datasheet Details

Part number
BD902
Manufacturer
INCHANGE
File Size
208.13 KB
Datasheet
BD902-INCHANGE.pdf
Description
PNP Transistor
