BD9016KV-M, BD9015KV-M - 2ch Synchronous Rectification Step-Down Controller

BD9016KV-M Description

Datasheet Switching Regulator with external FET 3.9 to 30V, 2ch Synchronous Rectification Step-Down Controller BD9015KV-M BD9016KV-M General Descrip.
The BD9015KV-M and BD9016KV-M are high performance synchronous rectification switching controllers with wide input range and dual channel output.

BD9016KV-M Features

* N channel MOSFET direct drive
* Synchronous rectification for increased efficiency
* Acceptable Low ESR ceramic capacitor at output
* Integrated PLL circuit for external synchronization; 250kHz to 600kHz
* Current mode control
* High side MOSFET current sensing
* Pre-bi

BD9016KV-M Applications

* Car audio, Car navigation

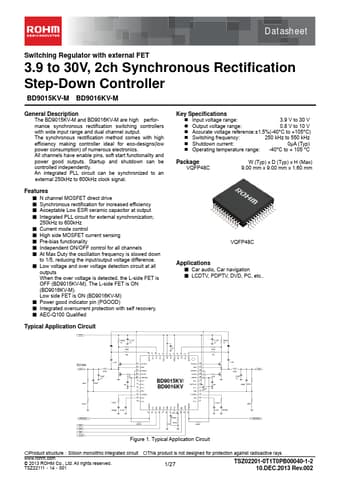

* LCDTV, PDPTV, DVD, PC, etc. . 5V/4A BD9015KV/ BD9016KV Figure 1. Typical Application Circuit ○Product structure：Silicon monolithic integrated circuit www. rohm. com © 2013 ROHM Co. , Ltd. All rights reserved. TSZ2211114001 ○This product is not designed for prote
