BU4522AX - NPN Transistor

Datasheet Summary

Description

Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 800V (Min) High Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

color TV receivers and PC monitors.

📥 Download Datasheet

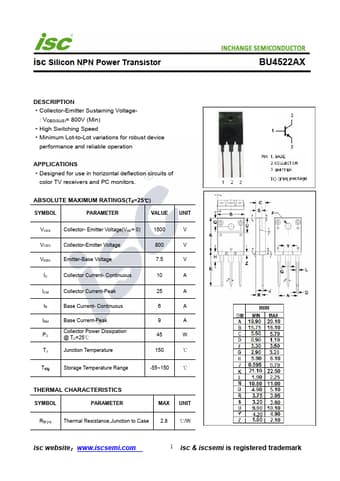

Datasheet preview – BU4522AX

Datasheet Details

Part number BU4522AX
Manufacturer INCHANGE
File Size 210.21 KB
Description NPN Transistor
Datasheet download datasheet BU4522AX Datasheet
Additional preview pages of the BU4522AX datasheet.

📁 Similar Datasheet

  • BU4522AX - Silicon Diffused Power Transistor (NXP)
  • BU4522AF - Silicon Diffused Power Transistor (NXP)
  • BU4522AF - Silicon NPN Power Transistor (Inchange Semiconductor)
  • BU4522DF - Silicon Diffused Power Transistor (NXP)
  • BU4522DX - Silicon Diffused Power Transistor (NXP)
  • BU4523AF - Silicon Diffused Power Transistor (NXP)
  • BU4523AW - Silicon Diffused Power Transistor (NXP)
  • BU4523AX - Silicon Diffused Power Transistor (NXP)
  • BU4523DF - Silicon Diffused Power Transistor (NXP)
  • BU4523DW - Silicon Diffused Power Transistor (NXP)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc Silicon NPN Power Transistor BU4522AX DESCRIPTION ·Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 800V (Min) ·High Switching Speed ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for use in horizontal deflection circuits of color TV receivers and PC monitors. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector- Emitter Voltage(VBE= 0) 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7.
