BU922 - NPN Transistor

BU922 Description

isc Silicon NPN Power Transistor BU922 .
Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 450V(Min). Minimum Lot-to-Lot variations for robust device performance and reliable opera.

BU922 Applications

* Designed for automotive ignition applications and inverter circuits for motor control. ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector-Emitter Voltage VBE= 0 500 V VCEO Collector-Emitter Voltage 450 V VEBO Emitter-Base Voltage 5 V IC Collector Cur

📥 Download Datasheet

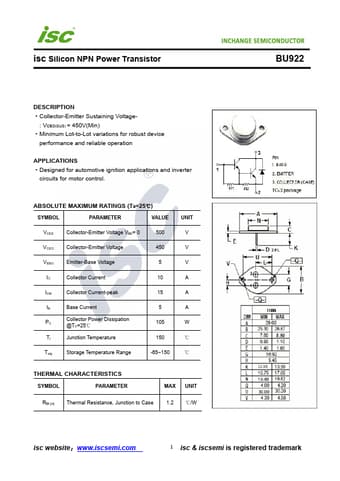

Preview of BU922 PDF
datasheet Preview Page 2

Datasheet Details

Part number
BU922
Manufacturer
INCHANGE
File Size
202.73 KB
Datasheet
BU922-INCHANGE.pdf
Description
NPN Transistor
