D111 Silicon NPN Power Transistor

D111 Description

INCHANGE Semiconductor isc Silicon NPN Power Transistor isc Product Specification 2SD111 .
High Power Dissipation- : PC= 100W@TC= 25℃. High Current Capability- : IC = 10A APPLICATIONS. Designed for power amplifier , power switch.

D111 Applications

* Designed for power amplifier , power switching ,DC-DC converter and regulator applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 100 V VCEO VEBO Collector-Emitter Voltage Emitter-Base Voltage 80 V 10 V IC Collector Current-Continuo

📥 Download Datasheet

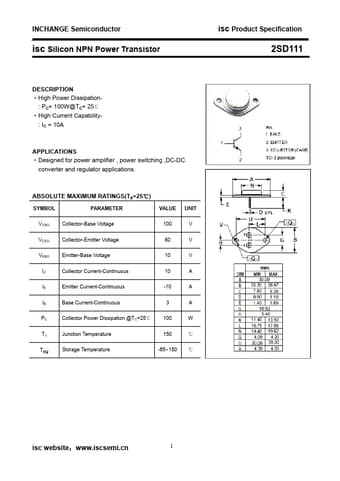

Preview of D111 PDF
datasheet Preview Page 2

Datasheet Details

Part number
D111
Manufacturer
INCHANGE
File Size
102.74 KB
Datasheet
D111-INCHANGE.pdf
Description
Silicon NPN Power Transistor
