D1117 1A LOW DROPOUT LINEAR REGULATOR

The 1117 is a series of low dropout three-terminal egulators with a dropout of 1.15V at 1A output current. The 1117 series provides current limiting and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to be within 1%. Current limit is trimmed to e.

D1117 Features

* Low Dropout Voltage: 1.15V at 1A Output Current

* Trimmed Current Limit

* On-Chip Thermal Shutdown

* Three-Terminal Adjustable or Fixed 1.5V, 1.8V, 2.5V, 3.3V, 5V

* Operation junction Temperature: 0 ℃ to125℃ APPLICATIONS

* PC Motherboard

* LC

D1117-YANGJINGMICROELECTRONICS.pdf

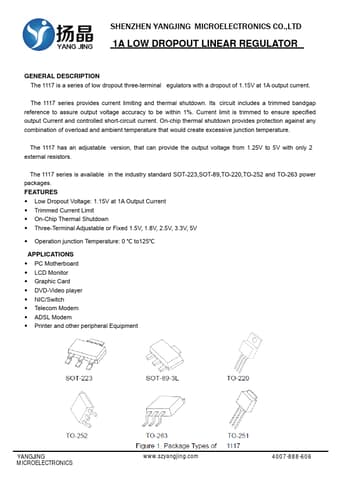

D1117 Datasheet Preview — Preview of D1117 PDF

Datasheet Details

Part number:

D1117

Manufacturer:

YANGJING MICROELECTRONICS

File Size:

366.56 KB

Description:

1a low dropout linear regulator.
