DMP4025LK3 - P-Channel MOSFET

INCHANGE

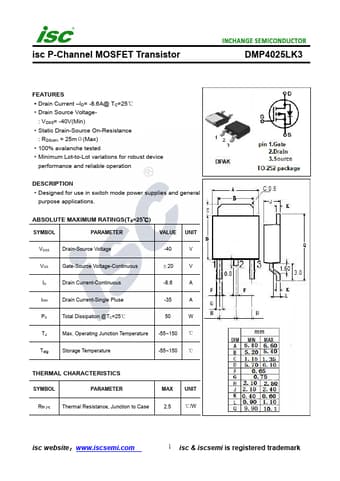

DMP4025LK3 Datasheet Preview — Preview of DMP4025LK3 PDF

Datasheet Details

Part number	DMP4025LK3
Manufacturer	INCHANGE
File Size	261.42 KB
Description	P-Channel MOSFET
Datasheet	DMP4025LK3-INCHANGE.pdf

DMP4025LK3 Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous -40 V ±20 V ID Drain Current-Continuous -8.6 A IDM Drain Current-Single Pluse -35 A PD Total Dissipation @TC=25℃ 50 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c

Features

Drain Current.
ID= -8.6A@ TC=25℃.
Drain Source Voltage- : VDSS= -40V(Min).
Static Drain-Source On-Resistance : RDS(on) = 25mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
