DMP4025SFG Datasheet - Diodes

P-Channel MOSFET

DMP4025SFG Features

* Low RDS(on)

* Minimizes conduction losses

* Fast switching speed

* Minimizes switching losses

* Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* Qualified to AEC-Q101 Standards for High Reliability Mec

DMP4025SFG General Description

This MOSFET has been designed to minimize the on-state resistance and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications * Motor Control * Backlighting * DC-DC Converters * Printer Equipment POWERDI3333-8 A .

DMP4025SFG Datasheet (257.79 KB)

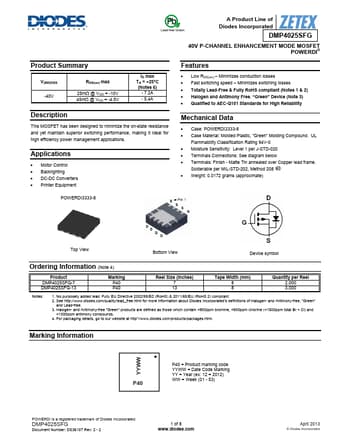

DMP4025SFG Datasheet Preview — Preview of DMP4025SFG PDF

Datasheet Details

Part number:

DMP4025SFG

Manufacturer:

DIODES ↗

File Size:

257.79 KB

Description:

P-channel mosfet.
ADVANCE INFORMATION Product Summary V(BR)DSS -40V RDS(on) max 25m @ VGS = -10V 45m @ VGS = -4.5V ID max TA = +25°C (Notes 6) - 7.2A - 5.4A Desc.
