DMP4026SFG, 40V P-CHANNEL MOSFET

Product Summary BVDSS -40V RDS(ON) Max 25mΩ @ VGS = -10V 45mΩ @ VGS = -4.5V ID Max TC = +25°C -28A -21A .
and Applications This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) yet maintain superior switching performance.

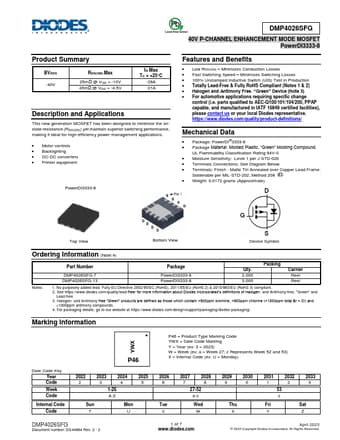

datasheet Preview Page 1 from Datasheet4u.com

DMP4026SFG-DIODES.pdf

DMP4026SFG Datasheet Preview — Preview of DMP4026SFG PDF

Datasheet Details

Part number:

DMP4026SFG

Manufacturer:

DIODES ↗

File Size:

538.88 KB

Description:

40V P-CHANNEL MOSFET

Features

* Low RDS(ON)
* Minimizes Conduction Losses
* Fast Switching Speed
* Minimizes Switching Losses
* 100% Unclamped Inductive Switch (UIS) Test in Production
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

Applications

* This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.
* Motor controls
* Backlighting
* DC-DC converters
* Printer equipment PowerDI333
