FQP10N20C - N-Channel MOSFET

Datasheet Summary

Features

  • With TO-220 packaging.
  • High speed switching.
  • Very high commutation ruggedness.
  • Easy to use.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operationz.

📥 Download Datasheet

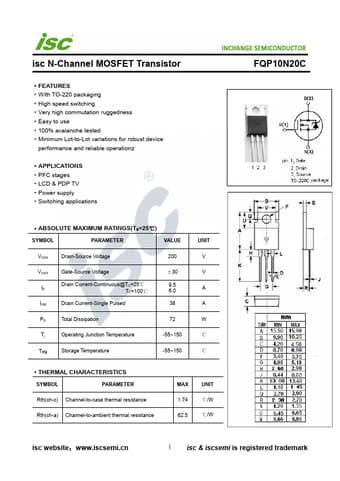

Datasheet preview – FQP10N20C

Datasheet Details

Part number FQP10N20C
Manufacturer INCHANGE
File Size 202.99 KB
Description N-Channel MOSFET
Datasheet download datasheet FQP10N20C Datasheet
Additional preview pages of the FQP10N20C datasheet.

📁 Similar Datasheet

  • FQP10N20C - 200V N-Channel MOSFET (Fairchild Semiconductor)
  • FQP10N20 - N-Channel 200V MOSFET (VBsemi)
  • FQP10N20 - 200V N-Channel MOSFET (Fairchild Semiconductor)
  • FQP10N20L - 200V LOGIC N-Channel MOSFET (Fairchild Semiconductor)
  • FQP10N50CF - N-Channel MOSFET (Fairchild Semiconductor)
  • FQP10N60 - N-Channel MOSFET (Oucan Semi)
  • FQP10N60C - 600V N-Channel MOSFET (Fairchild Semiconductor)
  • FQP10N60CF - N-Channel MOSFET (Fairchild Semiconductor)
  • FQP10N65 - 10A N-Channel MOSFET (Oucan Semi)
  • FQP11N40 - 400V N-Channel MOSFET (Fairchild Semiconductor)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc N-Channel MOSFET Transistor ·FEATURES ·With TO-220 packaging ·High speed switching ·Very high commutation ruggedness ·Easy to use ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operationz ·APPLICATIONS ·PFC stages ·LCD & PDP TV ·Power supply ·Switching applications INCHANGE Semiconductor FQP10N20C ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 200 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±30 9.5 6.
