IPP60R380P6 - N-Channel MOSFET

INCHANGE

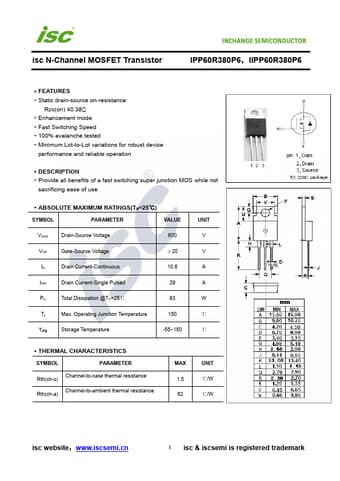

IPP60R380P6 Datasheet Preview — Preview of IPP60R380P6 PDF

Datasheet Details

Part number	IPP60R380P6
Manufacturer	INCHANGE
File Size	241.13 KB
Description	N-Channel MOSFET
Datasheet	IPP60R380P6-INCHANGE.pdf

IPP60R380P6 Product details

Description

Provide all benefits of a fast switching super junction MOS while not sacrificing ease of use ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 10.6 IDM Drain Current-Single Pulsed 29 PD Total Dissipation @TC=25℃ 83 Tj Max.Operating Junction Temperature 150 Tstg Storage Temperature -55~150 UNIT V V A A W ℃ ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth(ch-c) C

Features

br>.
Static drain-source on-resistance: RDS(on) ≤0.38Ω.
Enhancement mode.
Fast Switching Speed.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
