IRLB8748 - N-Channel MOSFET

IRLB8748 Description

isc N-Channel MOSFET Transistor INCHANGE Semiconductor IRLB8748，IIRLB8748 *.

IRLB8748 Features

* Static drain-source on-resistance: RDS(on) ≤4.8mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

IRLB8748 Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 30 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 92 IDM Drain Current-Single Pulsed 370 PD Total Dissipation @TC=25℃ 75 Tj Max. Operating Junction Temperature 175 Tstg Storage Tem

📥 Download Datasheet

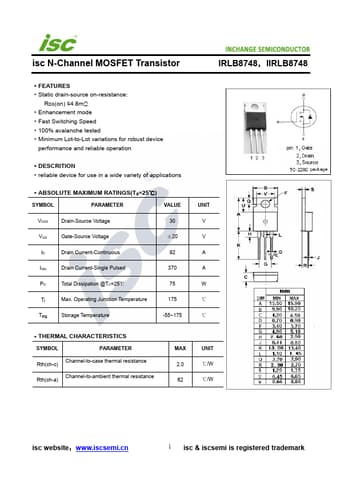

Preview of IRLB8748 PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRLB8748
Manufacturer
INCHANGE
File Size
242.33 KB
Datasheet
IRLB8748-INCHANGE.pdf
Description
N-Channel MOSFET
