IRLB3813PBF, Power MOSFET

PD - 97407 IRLB3813PbF Applications l Optimized for UPS/Inverter Applications l High Frequency Isolated DC-DC Converters with Synchronous Rectificati.

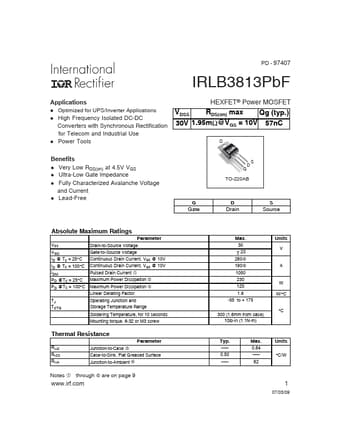

datasheet Preview Page 1 from Datasheet4u.com

IRLB3813PBF-InternationalRectifier.pdf

IRLB3813PBF Datasheet Preview — Preview of IRLB3813PBF PDF

Datasheet Details

Part number:

IRLB3813PBF

Manufacturer:

International Rectifier

File Size:

240.01 KB

Description:

Power MOSFET

Features

* lease refer to IR website at: http://www. irf. com/package/ Notes: Repetitive rating; pulse width limited by max. junction temperature. Starting TJ = 25°C, L = 0.45mH, RG = 25Ω, IAS = 48A.
* Pulse width ≤ 400µs; duty cycle ≤ 2%.
* When mounted on 1" square PCB (FR-4 or G-10 Material)

Applications

* l Optimized for UPS/Inverter Applications l High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use l Power Tools HEXFET® Power MOSFET VDSS RDS(on) max Qg (typ. ) 30V 1.95mΩ@VGS = 10V 57nC D Benefits l Very Low RDS(on) at 4.5V VGS l Ultra-Low Gate
