IXFP76N15T2, N-Channel MOSFET

isc N-Channel MOSFET Transistor IXFP76N15T2 *.

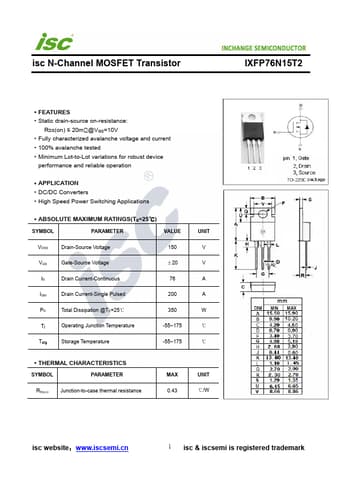

datasheet Preview Page 1 from Datasheet4u.com

IXFP76N15T2-INCHANGE.pdf

IXFP76N15T2 Datasheet Preview — Preview of IXFP76N15T2 PDF

Datasheet Details

Part number:

IXFP76N15T2

Manufacturer:

INCHANGE

File Size:

246.77 KB

Description:

N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤ 20mΩ@VGS=10V
* Fully characterized avalanche voltage and current
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 150 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 76 IDM Drain Current-Single Pulsed 200 PD Total Dissipation @TC=25℃ 350 Tj Operating Junction Temperature -55~175 Tstg Storage Te
