STW43NM60N N-Channel MOSFET

INCHANGE

Description

isc N-Channel MOSFET Transistor STW43NM60N .

📥 Download Datasheet

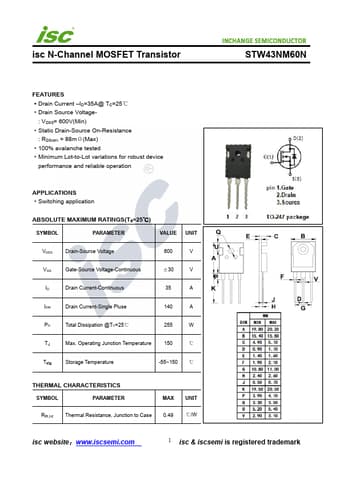

STW43NM60N Datasheet Preview — Preview of STW43NM60N PDF

Datasheet Specifications

Part number: STW43NM60N
Manufacturer: INCHANGE
File Size: 388.15 KB
Datasheet: STW43NM60N-INCHANGE.pdf
Description: N-Channel MOSFET

Features

* Drain Current
* ID=35A@ TC=25℃
* Drain Source Voltage- : VDSS= 600V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 88mΩ(Max)
* 100% avalanche tested

Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 35 A IDM Drain Current-Single Pluse 140 A PD Total Dissipation @TC=25℃ 255 W TJ Max.
