SUD50P10-43L - P-Channel MOSFET

INCHANGE

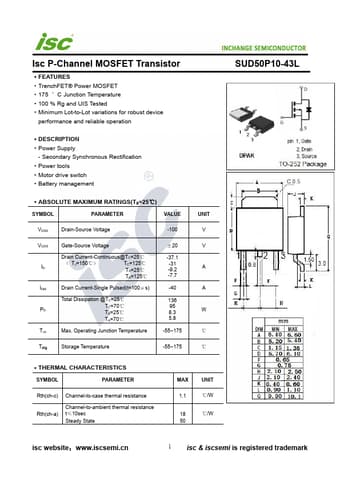

SUD50P10-43L Datasheet Preview — Preview of SUD50P10-43L PDF

Datasheet Details

Part number	SUD50P10-43L
Manufacturer	INCHANGE
File Size	203.95 KB
Description	P-Channel MOSFET
Datasheet	SUD50P10-43L-INCHANGE.pdf

SUD50P10-43L Product details

Description

Power Supply - Secondary Synchronous Rectification Power tools Motor drive switch Battery management ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage -100 VGSS ID IDM PD Tch Gate-Source Voltage Drain Current-Continuous@TC=25℃ （ TJ=150℃） TC=125℃ TA=25℃ TA=125℃ Drain Current-Single Pulsed(t=100μs) Total Dissipation @TC=25℃ TC=70℃ TA=25℃ TA=70℃ Max.Operating Junction Temperature ±20 -37.1 -31 -9.2 -7.7 -40 136 95 8.3 5.8 -

Features

TrenchFET® Power MOSFET.
175 °C Junction Temperature.
100 % Rg and UIS Tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
