SUD70090E N-Channel MOSFET

INCHANGE

SUD70090E Description

isc N-Channel MOSFET Transistor *.

SUD70090E Features

* Static drain-source on-resistance: RDS(on)≤8.9mΩ
* Enhancement mode
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

SUD70090E Applications

* DC/DC converter
* Power tools
* Motor drive switch
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 50 IDM Drain Current-Single Pulsed 120 PD Total Dissipation @TC=25℃ 125

📥 Download Datasheet

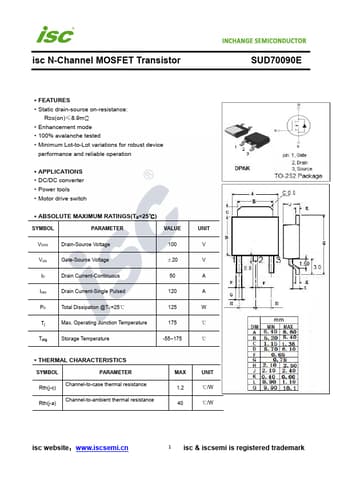

SUD70090E Datasheet Preview — Preview of SUD70090E PDF

Datasheet Details

Part number: SUD70090E
Manufacturer: INCHANGE
File Size: 239.49 KB
Datasheet: SUD70090E-INCHANGE.pdf
Description: N-Channel MOSFET
