SUD09P10-195 P-Channel 100V MOSFET

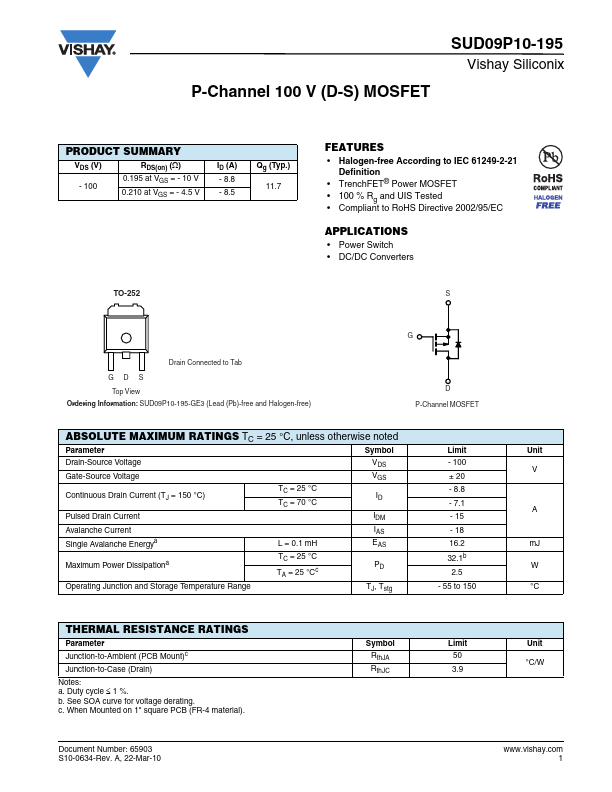

📥 Download Datasheet Datasheet Preview Page 1

Description

P-Channel 100 V (D-S) MOSFET SUD09P10-195 Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 100 0.195 at VGS = - 10 V 0.210 at VGS = - 4.5 .

📥 Download Datasheet

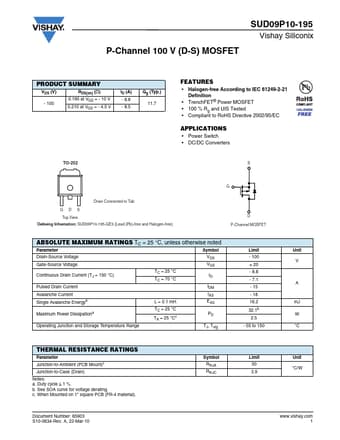

Preview of SUD09P10-195 PDF

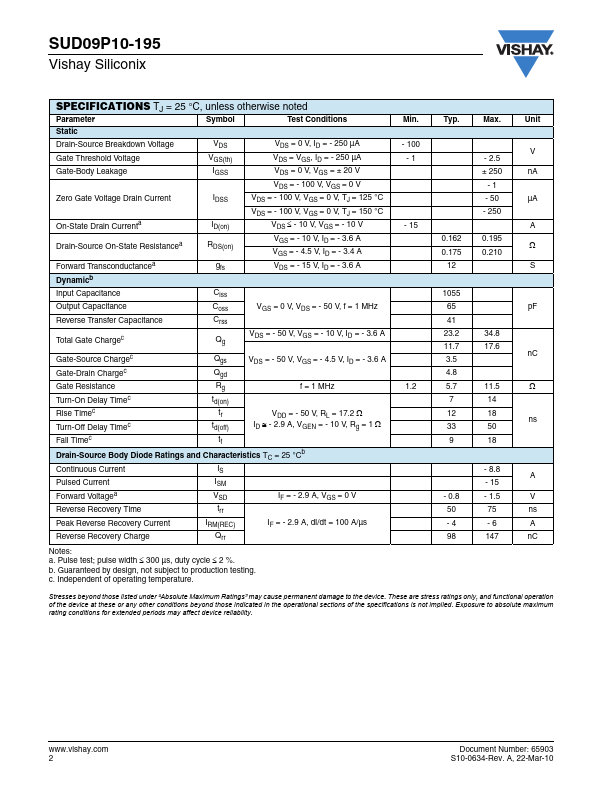

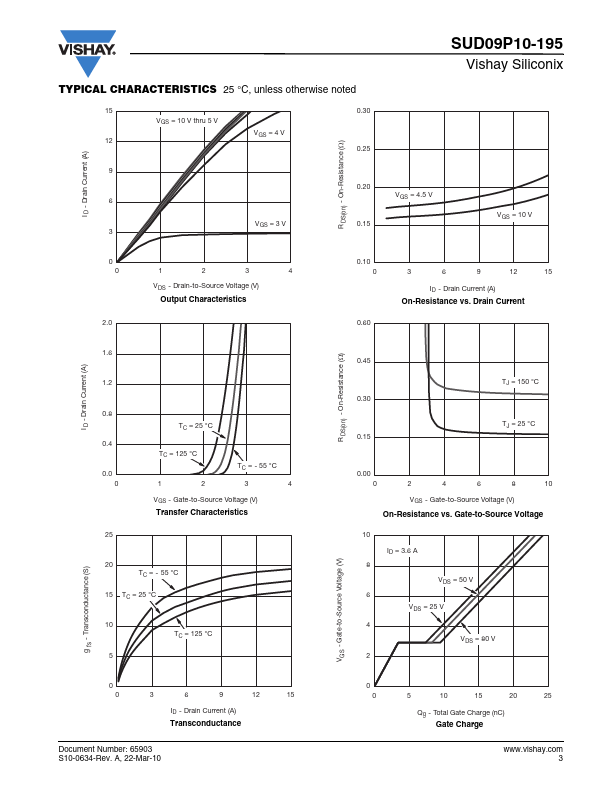

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

Applications

* Power Switch
* DC/DC Converters S Drain Connected to Tab GDS Top View Ordering Information: SUD09P10-195-GE3 (Lead (Pb)-free and Halogen-free) G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage G
