SUD25N04-25 N-Channel MOSFET

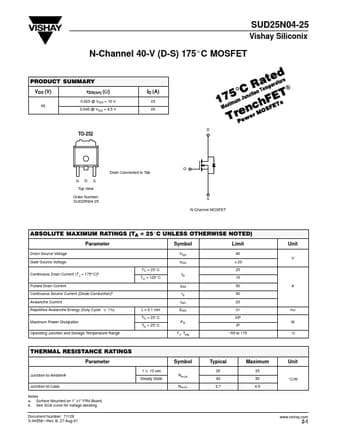

SUD25N04-25 Vishay Siliconix N-Channel 40-V (D-S) 175_C MOSFET PRODUCT SUMMARY VDS (V) rDS(on) (W) 0.025 @ VGS = 10 V 40 0.040 @ VGS = 4.5 V TO-252 ID (A) 25 20 D GDS Top View Order Number: SUD25N04-25 Drain Connected to Tab G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C)b Pulsed Drain Current Continuous Source Current (Diode Conduction)b Avalanche.

SUD25N04-25 Datasheet (49.09 KB)
