CFPS-108 - Crystal Clock Oscillator

📥 Download Datasheet

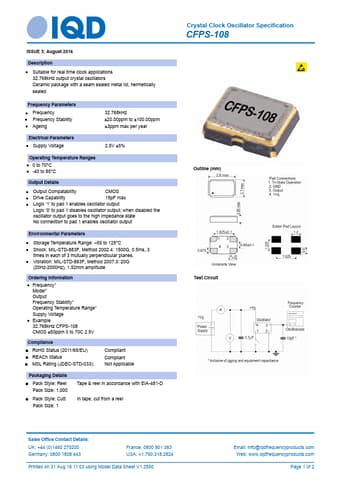

Preview of CFPS-108 PDF
datasheet Preview Page 2

Datasheet Details

Part number CFPS-108
Manufacturer IQD
File Size 265.53 KB
Description Crystal Clock Oscillator
Datasheet download datasheet CFPS-108-IQD.pdf

CFPS-108 Product details

Description

Suitable for real time clock applications 32.768kHz output crystal oscillators Ceramic package with a seam sealed metal lid, hermetically sealed Frequency Parameters Frequency Frequency Stability Ageing 32.768kHz ±20.00ppm to ±100.00ppm ±3ppm max per year Electrical Parameters Supply Voltage 2.5V ±5% Operating Temperature Ranges 0 to 70°C -40 to 85°C Output Details Output Compatability CMOS Drive Capability 15pF max Logic ‘1’ to pad 1 enables oscillator output Logic ‘0’ to pad 1 disa
