CFPS-109 Crystal Clock Oscillator

CFPS-109 Description

ISSUE 3; August 2016 .
Suitable for real time clock applications 32.

CFPS-109 Applications

* 32.768kHz output crystal oscillators Ceramic package with a seam sealed metal lid, hermetically sealed Frequency Parameters Frequency Frequency Stability Ageing 32.768kHz ±20.00ppm to ±100.00ppm ±3ppm max per year Electrical Parameters Supply Voltage 3.3V ±5% Operating Temperature Ranges 0 to 7

📥 Download Datasheet

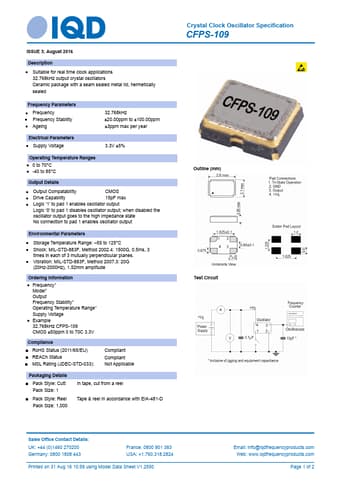

Preview of CFPS-109 PDF
datasheet Preview Page 2

Datasheet Details

Part number
CFPS-109
Manufacturer
IQD
File Size
265.44 KB
Datasheet
CFPS-109-IQD.pdf
Description
Crystal Clock Oscillator
