CFPS-72 (CFPS-72 / CFPS-73) Semtech Reference

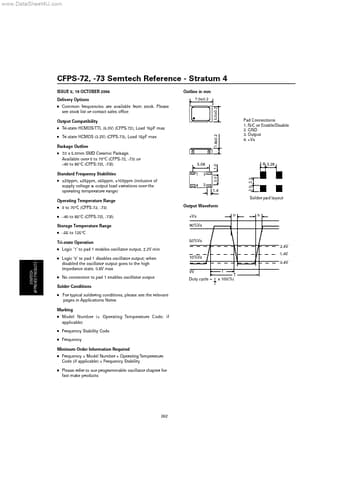

www.DataSheet4U.com CFPS-72, -73 Semtech Reference - Stratum 4 ISSUE 5; 19 OCTOBER 2004 Delivery Options I Outline in mm 7.0±0.2 5.0±0.2 Common frequencies are available from stock. Please see stock list or contact sales office Output Compatibility I Tri-state HCMOS/TTL (5.0V) (CFPS-72), Load 15pF max Tri-state HCMOS (3.3V) (CFPS-73), Load 15pF max 1.8±0.2 I Pad Connections 1. N/C or Enable/Disable 2. GND 3. Output 4. +Vs Package Outline I Standard Frequency Stabilities I 1 4 2 3.0 3 .
